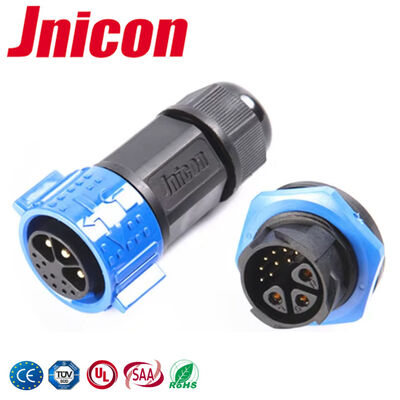

50Amps Industrial Outdoor Waterproof Connector , Jnicon Waterproof Power Plug
Connector details
Bulkhead waterproof connector could be easy install and disassemble, IP67 waterproof level could be well protected for your application. Gold-plated contact, high performance of corrosion resistance and electrical.
1. Multicore: 2,3,4,5,6,7,8,9 and more.
2. Connection method: soldering(welding), PCB version
3. Dustproof cover available under off-working condition.
4. Certification: UL,TUV,RoHS,CQC,CE
Technical Spec
| Poles: |
12poles(3+9) |
| Waterproof level: |
IP67 |
| Cable specification: |
20AWG-12AWG |
| Cable diameter range: |
4.5mm-11mm(18AWG-12AWG) |
| Core number: |
2 pin,3pin,4pin , more pins optional |
| Rated current (A): |
20A |
| Operating voltage (AC.V.rms): |
500V |
| Service |
Cable length could be customized |
Main advantages:
| Sealed against dust and fluid (IP67) |
| Vibration resistance, impact resistance, stretching resistance |
| Dust cover to male and female are available |
3+9 pin waterproof connectors are widely used for Outdoor applications, insutrial power connection, PCB mount, housing and building contructions, electric cable extension etc.
Power and signal two in one to ensure your applications more stable and more easy to intall and disassembly.
Application industries:
| Stage equipment |
The smart grid |
LED lighting |
| Medical equipment |
Battery charge |
Automation |
| Solar energy equipment |
Ship equipment |
Agriculture |
| Electric power equipment |
Vehicles |
Ebike/motorcycle |
| Communications |
Automatic |
Transportation |
RFQ
Q: Are you a factory or trading company?
A: Yes, we are definitely factory, you are very welcome to visit our factory at your convenience, which Located in B-9, Fubilun industrial park, Chaoyang rd,Yanchuan community, Songgang, Shenzhen, China
Q: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Connector and Contact Gender
* Confirm Assembly style
* Confirm Mating style ( series or parallel)
* Confirm Cable OD size
* Confirm Cable Length and Material.
Q: hello, i do not know what's kind of connector i need, but i need it for led connection.
A: hello my friend, we are pleased to provide complete solution for you if more details could be provided such as: current(amp), voltage, wire number, cable size etc.
